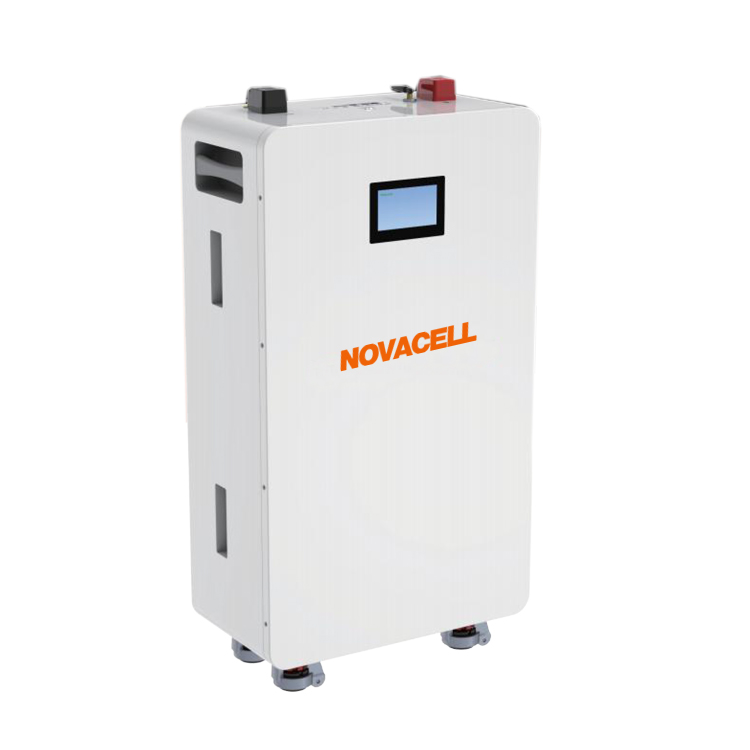

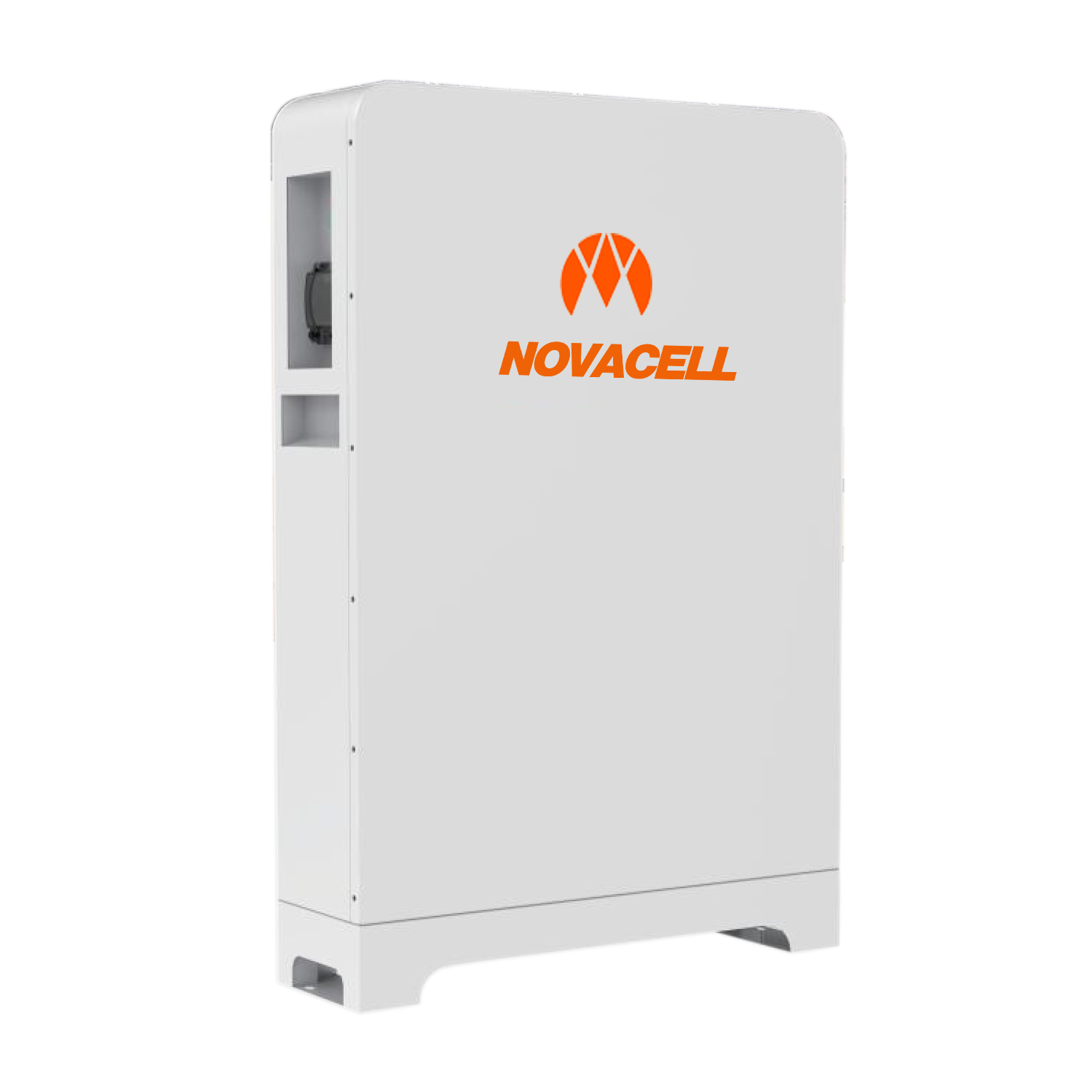

51.2V 280Ah 300Ah 314Ah 320Ah Lifepo4 14.33kWh 16kWh Battery Storage

Features

  • Voltage: 51.2V
  • Capacity: 280Ah
  • Energy: 14.34kWh
  • System type: Floor stand
  • Battery type: LiFePO4 Battery
  • Dimension with PCM: 700*1050*200mm
  • Working temp.: 0~85°C or -40~0°C
  • Communication: RS485/RS232/CAN/WiFi

Advantages

  • Light weight
  • Longer life cycle
  • Stock available
  • BIS KC certified
  • Warranty: 4 years
  • Famous company verified

Application

  • Solar storage
  • Energy storage
  • UPS
  • Home energy storage

Specification

Electrical CharacteristicsNominal Voltage51.2V
Nominal Capacity280Ah
Energy700*1050*200mm
Cycle life8500 cycles @(25±2℃,0.5C/0.5C,80%DoD)
ChargeStandard charge current0.2C
Maximum charge current0.5C
Charge voltage58.4±0.2V
Charge Mode0.2C CC to 58.4V, then 58.4V CV,charge current to 0.02C (CC/CV)
Charge cutoff Voltage58.4V
DischargeStandards discharge current0.2C
Maximum  continuous discharge current1C
Pulse discharge current1.5C
Discharge cutoff voltage40.0±0.2V
Operating ConditionCharge temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge temperature-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage temperatureLess than 3 months:-20°C~ 45°C; Less than 1 year:-20°C~ 25 °C
MechanicalCombination1S1P

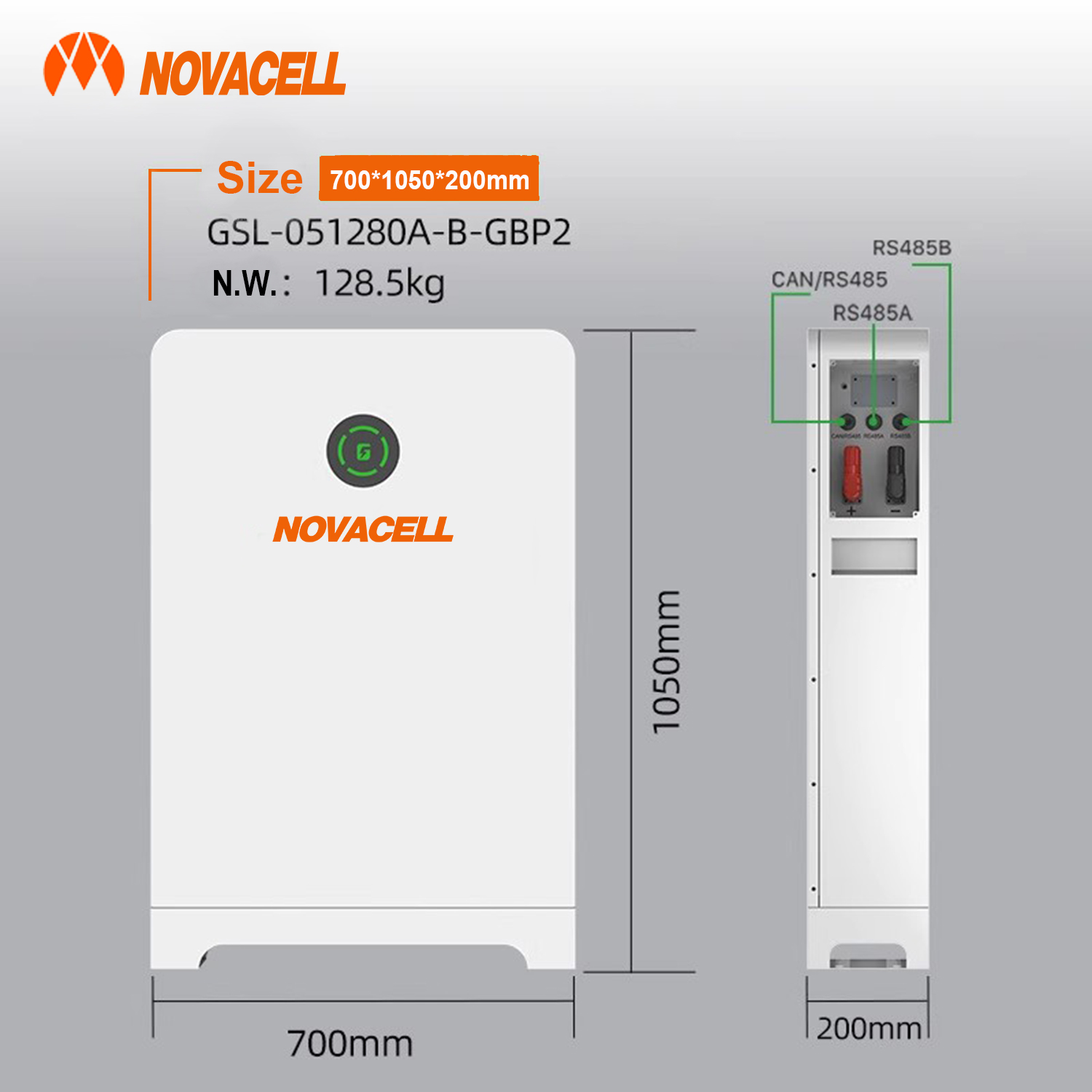

Dimension700*1050*200mm / 27.6*41.3*7.9 in
HousingAlumimum Foil
N.W.128.5kgs / 283 lbs
PCMIncluded
CableIncluded
Connector, NTCTBA
Switch,Indicator,displayTBA
Step-up/Step-downTBD

More details

We offer a range of 51.2v lithium batteries, including the 300ah, 280ah, and 314ah models. Our batteries are suitable for various applications, such as solar systems and energy storage. Please let us know if you have any specific requirements
