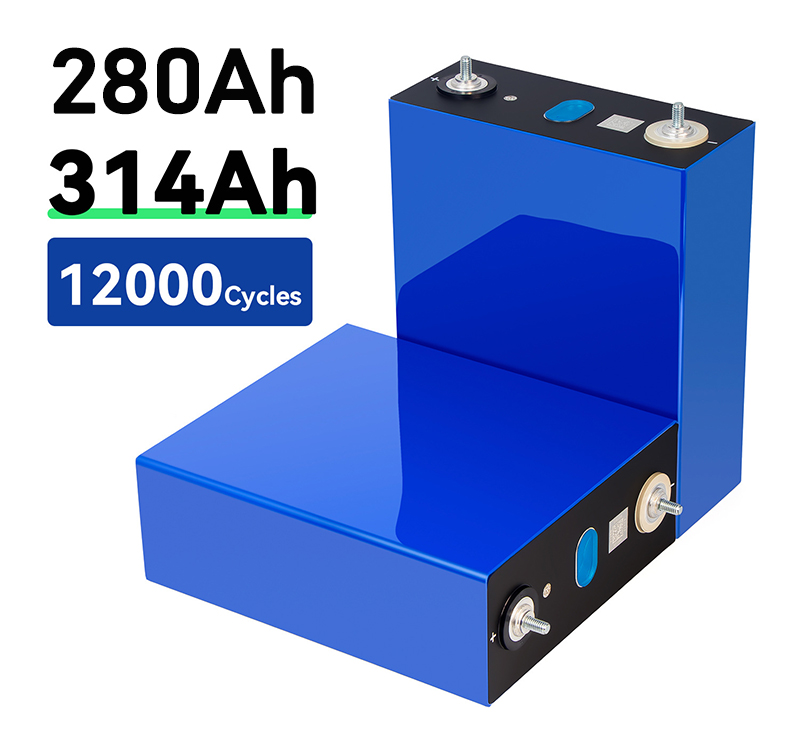

Eve Gotion Cornex Calb Rept Lishen Dejin Hitium Catl 314ah Lifepo4 Battery Cell

Inquire Now

Features

Brand: NOVACELL, EVE, CATL
Anode: LFP
Model: NV-LFPC314Ah
Voltage: 3.2V
Capacity: 314Ah
Energy: 1004.8Wh
N.W.: 5.6kg
Charge rate: 1C
Discharge rate: 3C
Size: T72*W173*L207mm

Advantages

Life cycle: 12000+ cycles
OEM/ODM: available
Discharge rate: 3C
Capacity: High
DIY: Easy
Quality: Grade A, Stable
Working temp.: -20~65°C
Certificate: BIS KC CE RoHS IEC62133 UN38.3

Application

Energy Storage
EV
AGM
Cars
Home appliances
Marines
UPS
Electric Forklift

Specification

Electrical Characteristics	Nominal Voltage	3.2V
	Nominal Capacity	314Ah
	Energy	1004.8Wh
	ACR	≤0.35 mΩ
	Battery type	LiFePo4
	Cycle Life	12000+ cycles
	Months Self Discharge	≤3% per month at 25℃
Standard Charge	Charge Voltage	3.65±0.2V
	Charge Mode(CC/CV)	At 0℃~45℃, charged to 3.65V at constant current of 0.2C5A, and then change continuously with constant voltage of 3.65V until the current was not more than 0.02C5A.
	Standard Charge Current	157A(0.5C)
	Max.Charge Current	314A(1.0C)
Standard Discharge	Standard discharge Current	62.8A(0.2C)
	Max. Discharge Current	942A(3C)
	Discharge Cut-off Voltage	2.5V
Environmental	Charge Temperature	0℃~45℃
	Discharging	-10℃~60℃
	Storage temperature	-5℃~35℃
	Storage Humidity	≤75% RH
	Water Dust Resistance	IP50
Mechanical	Cell	Singe cell
	Housing	Aluminum

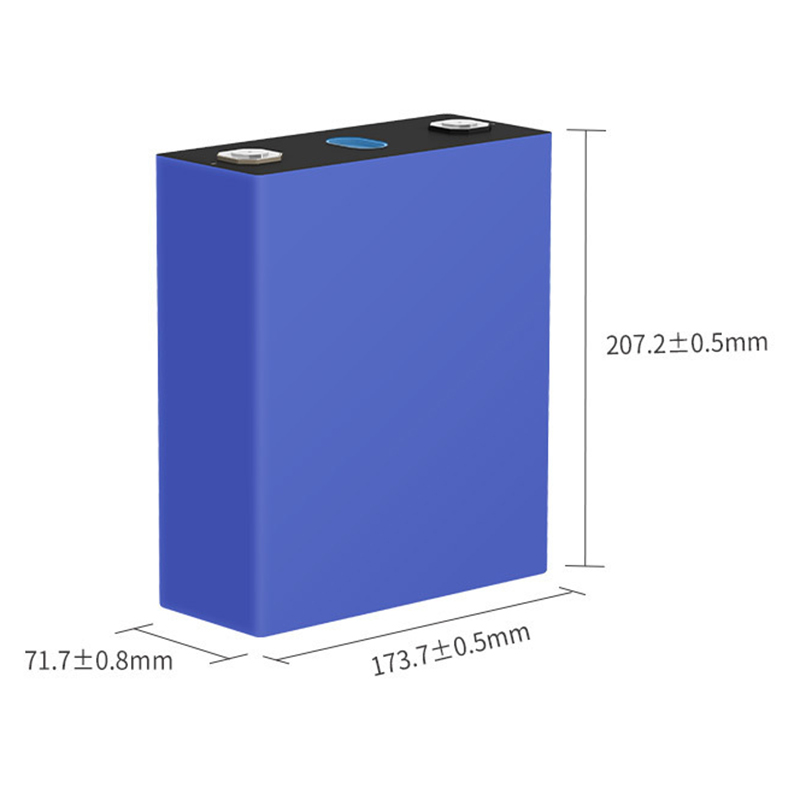

	Dimension(LWH*)	T72W173L200mm
	BMS	To be assigned
	N.W.:	5.60±0.15 kg

Related Models

Brand	Voltage (V)	Capacity (Ah)	Size TWL(mm)	Max.Continuous current(A)	N.W.(g)
EVE,CBAK, topband, Guoxuan, CATL, Gotion, NOVACELL, GTK, hakadi, BYD, SSGE	3.2V	20AH	2791173	10C	(620g,6000+)
	3.2V	20AH	2770135	3C	(540g,6000+)
Gotion	3.2V	21AH	2265146	1C	(540g,6000+)
CATL, CELDA, sacchetto, hakadi, CALB, topband	3.2V	25AH	2770180	3C	(670g,6000+)
Gotion	3.2V	27AH	20100140	3C	(670g,6000+)
Gotion	3.2V	27AH	20100140	3C	(670g,6000+)
Gotion	3.2V	27AH	20100140	6C	(670g,6000+)
Gotion	3.2V	27AH	20100140	1C	(670g,6000+)
Zelle, svolt, s volt, CATL, EVE	3.2V	30AH	20100140	1C	(780g,3500+)
Zelle, svolt, s volt, CATL, EVE	3.2V	30AH Power	22100140	3C	(780g,3500+)
Gotion, panasonic, EVE, NOVACELL, ecualizador, kingbo, celas	3.2V	50AH	3914895	1C	(11140g,7000+)
	3.2V	50AH	3914895	2C	(11140g,7000+)
	3.2V	50AH	26129148	1C	(11140g,7000+)
	3.2V	50AH	40148100	1C	(11140g,7000+)
NOVACELL	3.2V	52AH	28148115	1C	(1445g,7000+)
NOVACELL	3.2V	55AH	3914897	3C	(1445g,7000+)
Gotion	3.2V	67AH	42100140	3C	(1445g,7000+)
NOVACELL	3.2V	87AH	52148102	3C	(2094g,6000+)
Sinopoly, EVE, LOTHIUM, CELDA, HIGHSTAR, CELULA, CATL, REPT, GANFENG, SVOLT, SRNE, GOTION, RJETECH,NOVACELL	3.2V	100AH	48173115	1C	(2085g,5000+)
	3.2V	100AH	50160115	1C	(2085g,5000+)
	3.2	100AH	50160119	1C	(2085g,5000+)
	3.2V	100AH	50160119	1C	(2085g,5000+)
	3.2V	100AH	27175200	1C	(2085g,5000+)
	3.2V	100AH	27175200	1C	(2085g,3000+)
BYD, VIPOW, GOTION	3.2V	102AH	50160116	1C	(2085g,5000+)
BYD, VIPOW, GOTION	3.2V	102AH	50160116	1C	(2085g,5000+)
SVOLT, GOTION	3.2V	104AH	53148115	3C	(2085g,5000+)
EVE, ULI, CARL, NOVACELL, GOTION, GPT, CATL, SANWODA, UBPOWER	3.2V	105AH	27175200	3C	(2085g,5000+)
HI STAR, HIGHSTAR, CATL	3.2V	120AH	50148126	1C	(2461g,4000+)
NOVACELL	3.2V	124AH	29207168	3C	(2461g,4000+)
HI STAR, HIGHSTAR, EVE, CELDA, REPT	3.2	150AH	54173145	3C	(2914g,4000+)
HI STAR, HIGHSTAR, EVE, CELDA, REPT	3.2V	150AH	54173145	3C	(2914g,4000+)
CALB, CELDAS, NOVACELL, EVE, SEL, EVA, HIGHSTAR, CELLA, GANFENG, CATL, HITHIUM	3.2V	200AH		1C	(4264g,4000+)
GPT, REPT, EVE, NOVACELL	3.2V	230AH	54173205	3C	(4264g,4000+)
EVE, DESAY, REPT, CORNEX, HITHIUM, EVE, AWT, DESAY, GPT, CALT, RUIPU, CELDAS, YIXIANG, HIGEE, NOVACELL, DESA, OGNIWA	3.2V	280AH	71173207	3C	(5790g,4000+)
	3.2V	280AH	71173207	3C	(5790g,8000+)
	3.2V	280AH	71173207	3C	(5790g,8000+)
HIGHIUM, CATL, REPT, SEL, NUOVO, NOVACELL, DERIY	3.2V	300AH	81175200	1C	(6285g,4000+)
GPT, EVE	3.2V	304AH	71173207	3C	(5614g,4000+)
EVE, CORNEX, LISHEN, CELDA, HITHIUM, CATL, CALB, AWT	3.2V	314AH	74173205	3C	(4PCS/CTN/23KG)
EVE, CORNEX, LISHEN, CELDA, HITHIUM, CATL, CALB, AWT	3.2V	314AH	74173205	3C	(4PCS/CTN/23KG)
CORNEX, HITHIUM, EVE	3.2V	330AH		3C	(6285g,4000+)
GOTION, AWT, BYD, CATL, EVE, LISHEN	3.2V	340AH	81175200	3C	(6285g,4000+)
	3.2V	340AH	81175200	3C	(6285g,4000+)
	3.2V	340AH	81175200	3C	(6285g,4000+)
EVE, YIXIANG, GITION, BYD, LISHEN, CALB, CATL, HITHIUM	3.2V	628AH	72352207	3C	(11000g,8000+)

More Details

We have a variety of 314ah batteries available, including Lifepo4, Prismatic, and Hitium models. Please let us know if you have a specific preference or requirement.
