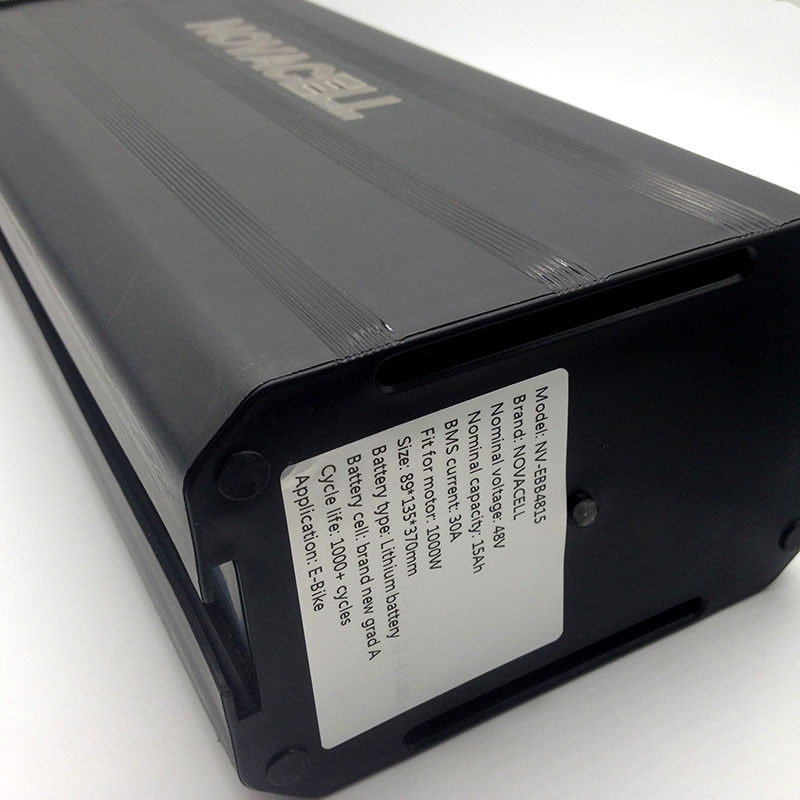

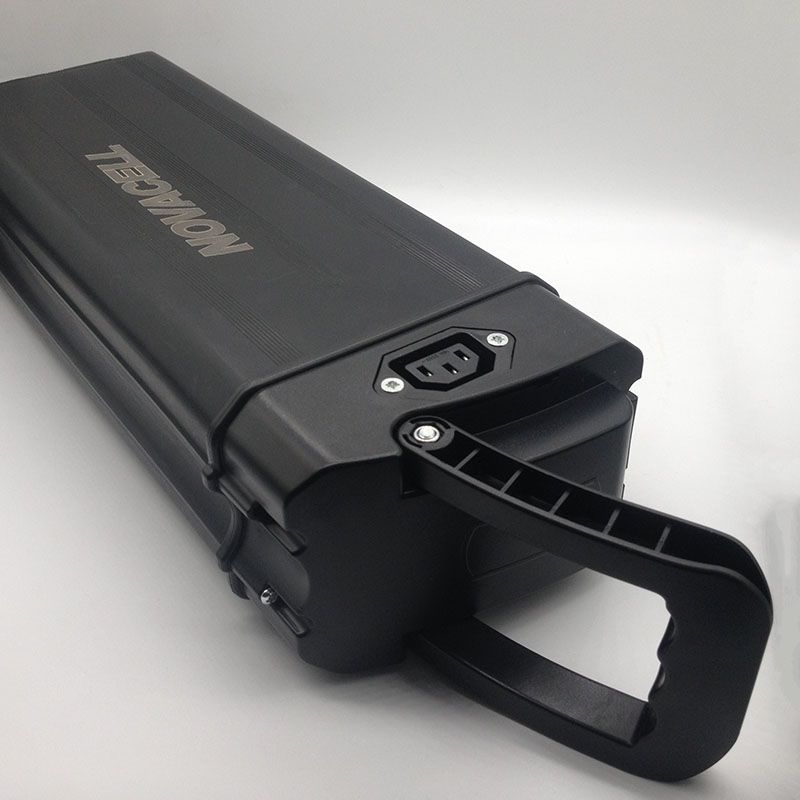

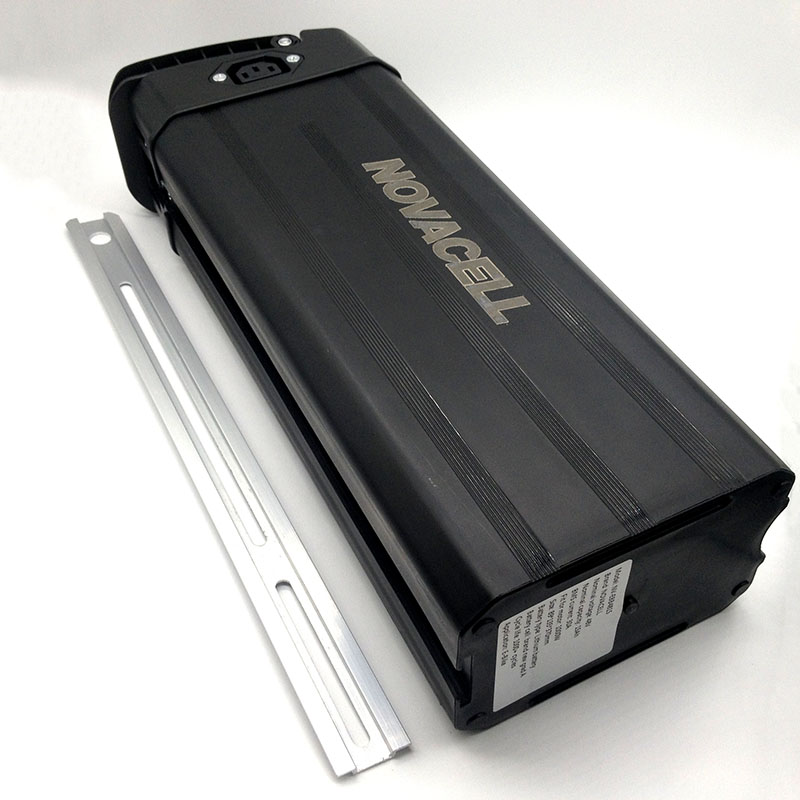

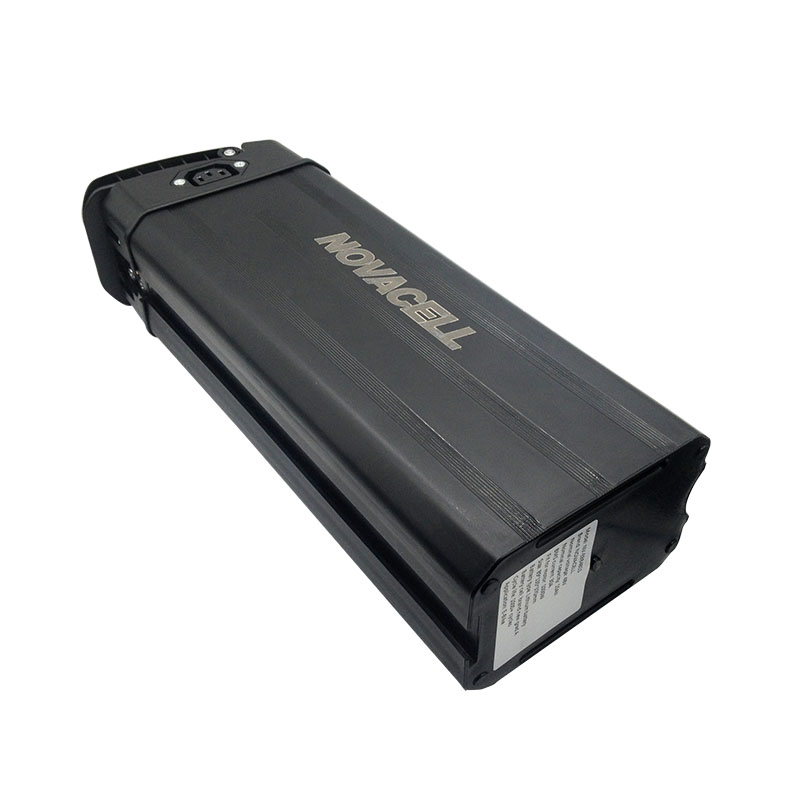

NOVACELL 36V 48V 15Ah 20Ah electric bike battery pack

Inquire Now

Features

Voltage: 48V
Capacity: 20Ah
Energy: 960Wh
Battery type: Lithium ion battery
Battery model: NV-EVB4820LIO
Dimension: 370*135*89mm
Working temp.: -20~60°C
Compose: 13S7P

Advantages

Light weight
Longer life cycle
Stock available
BIS KC CE certified
Warranty: 2 years
TUV company verified
Easy Installation
Environment Friendly

Application

EBike
Electric bike
E-bike
Bike
Electric Vehicle

Specification

Electrical Characteristics	Nominal Voltage	48V
	Nominal Capacity	20Ah
	Energy	960Wh
	Cycle life	3000+ cycles @(25±2℃,0.5C/0.5C,80%DoD)
	Internal Impedance	≤60mΩ
Charge	Standard charge current	0.2C(4A)
	Maximum charge current	0.5C(20A)
	Charge voltage	54.6±0.2V
	Charge Mode	0.2C CC to 54.6V, then 54.6V CV,charge current to 0.02C (CC/CV)
	Charge cutoff Voltage	54.6V
Discharge	Standards discharge current	1C(20A)
	Maximum continuous discharge current	3C(60A)
	Pulse discharge current	6C(120A)
	Discharge cutoff voltage	35.75±0.2V
Operating Condition	Charge temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage temperature	Less than 3 months:-20°C~ 45°C; Less than 1 year:-20°C~ 25 °C
Mechanical	Combination	1S1P
	Dimension	370x135x89mm
	Housing	Alumimum
	N.W.	6.0kgs
	PCM	Included
	Lock	Included
	Connector, NTC	TBA
	Switch,Indicator,display	TBA
	Step-up/Step-down	TBD

More details

We offer a variety of electric bike batteries, including 48v, 36v, and 20ah options. Our inventory includes e-bike battery packs, lithium batteries for electric bikes, and 48v battery packs for e-bikes.
