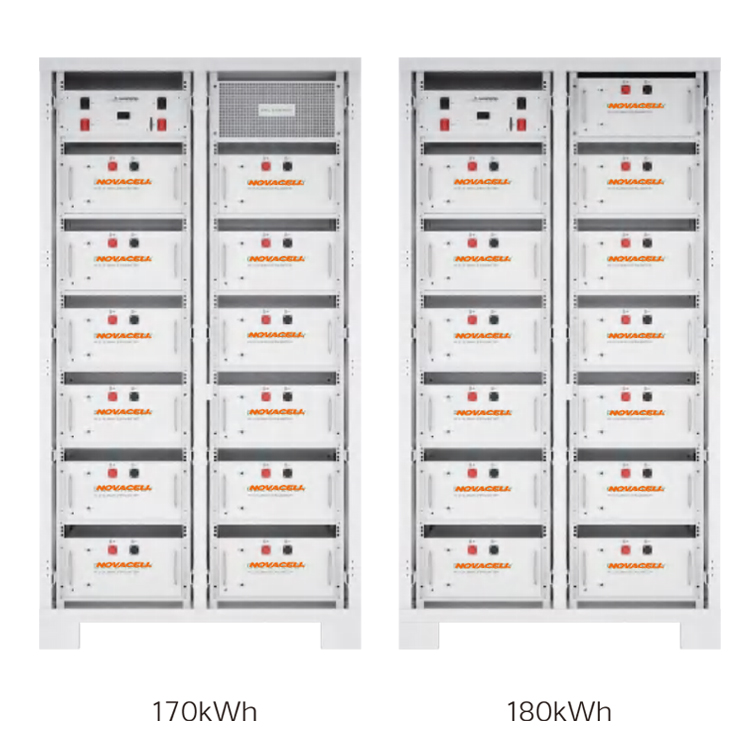

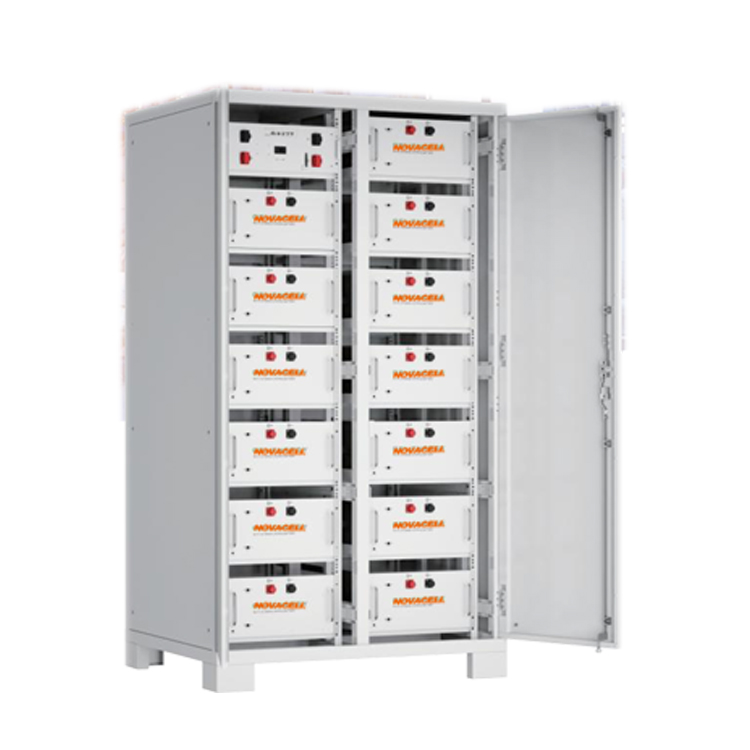

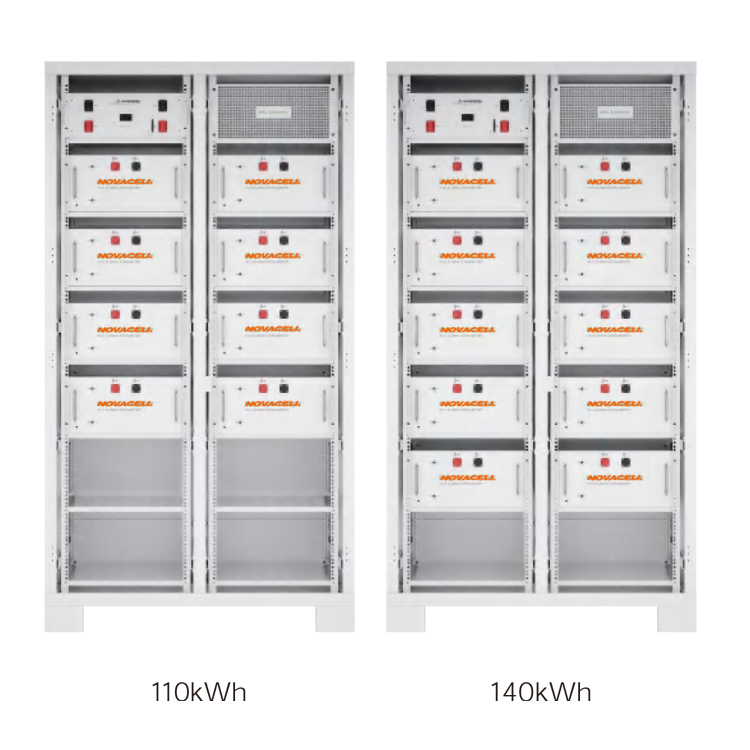

NOVACELL
Inquire Now

Features

  • Voltage: 409.6V
  • Energy: 114.72kWh
  • Battery Cell: LiFePO4 Battery
  • Dimension with PCM: 1200*1000*2200mm
  • Working temp.: -20~55°C
  • N.W.: 1165kgs
  • IP Rate: IP20
  • Communication port: CAN/TCP/IP

Advantages

  • 8500+ Life Cycles
  • Easy Installation
  • Easy Maintenance
  • Expandable
  • Warranty: 3+ years
  • Cheap cost effective
  • Most Inverter compatiable
  • Stackable
  • Commercial & Industrial ESS

Application

  • Solar Energy Storage
  • Home Energy storage
  • Telecom backup power
  • Data center
  • UPS
  • Wind energy storage

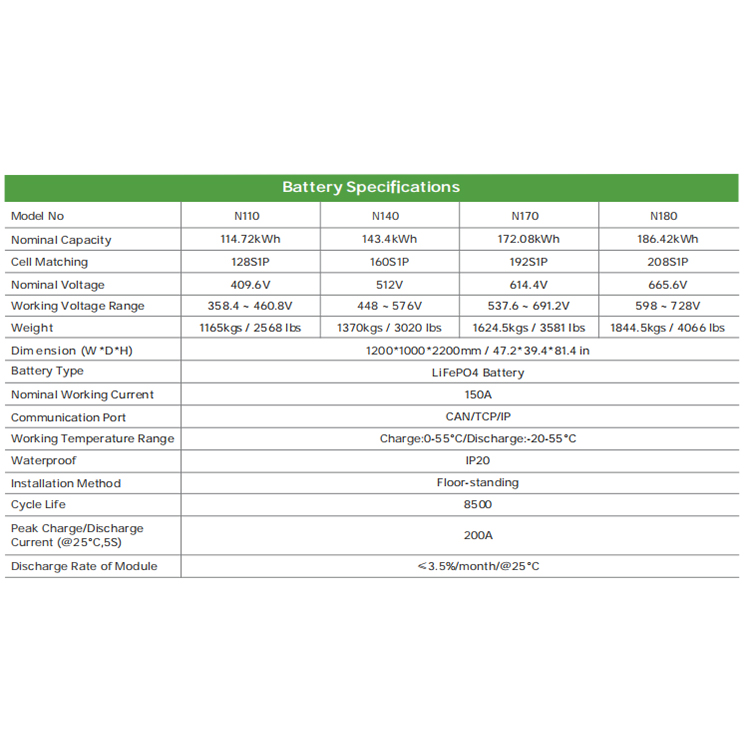

Specification

More details

Electrical CharacteristicsCell Matching128S1P
Nominal Capacity114.72kWh
Cycle life8500+ cycles @(25±2℃,0.5C/0.5C,80%DoD)
Nominal Voltage409.6V
Working Voltage Range358.4 ~ 460.8V
Nominal Working Current200A
MechanicalCertificationIEC62619, CE
Dimension1200*1000*2200mm
N.W.1165kgs
PCMIncluded
LockIncluded
Connector, NTCTBA
Switch,Indicator,displayTBA
Step-up/Step-downTBD

We have a variety of lithium batteries available, including the 5.12KWH Module, 10.24KWH Module N80K~N130K 81.92kWh 102.4kWh 122.88kWh 133.12kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles

Photo Exhibition

  • 2
  • 4
  • 1
  • Ready for Shipment

    NOVACELL 4.34KWH Module N110K~N180K 114.72kWh 143.4kWh 172.08kWh 186.42kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 8500+ Life Cycles

    Your feedback is very important to us, please fill in below table, or contact us by phone or email.

    • Name*

    • Phone*

    • Country*

    • Address

    • Message*

    • Products

    Related Products

    • 24V 48V 200Ah 500Ah LiFePO4 Forklift battery

      24V 48V 200Ah 500Ah LiFePO4 Forklift battery

    • Lithium lifepo4 golf cart batteries 48v 36v 51.2V 72V 50Ah 100Ah 105Ah 150Ah 160Ah 200Ah

      Lithium lifepo4 golf cart batteries 48v 36v 51.2V 72V 50Ah 100Ah 105Ah 150Ah 160Ah 200Ah

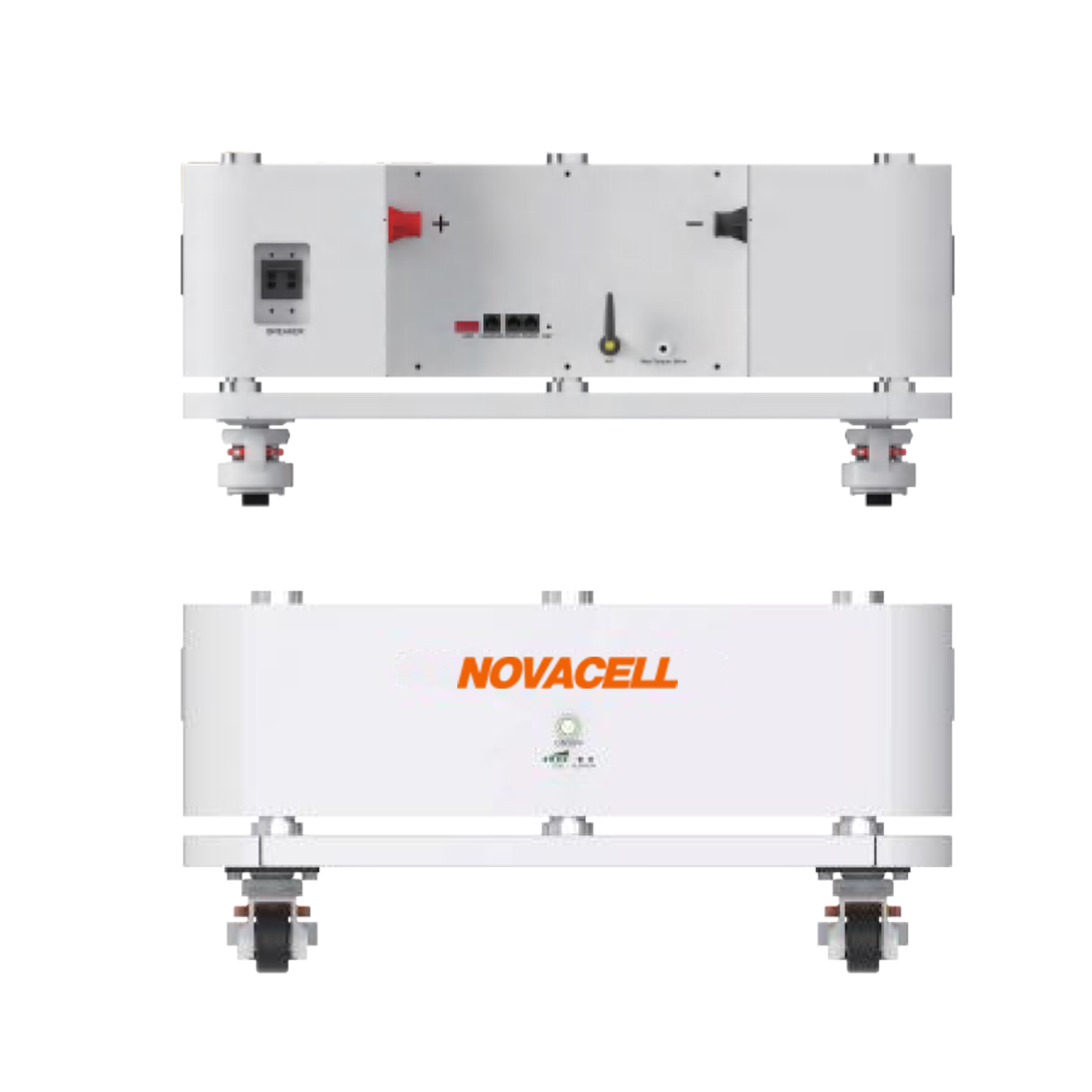

    • NOVACELL 51.2V 10.24kWh 200Ah BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-

      NOVACELL 51.2V 10.24kWh 200Ah BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-

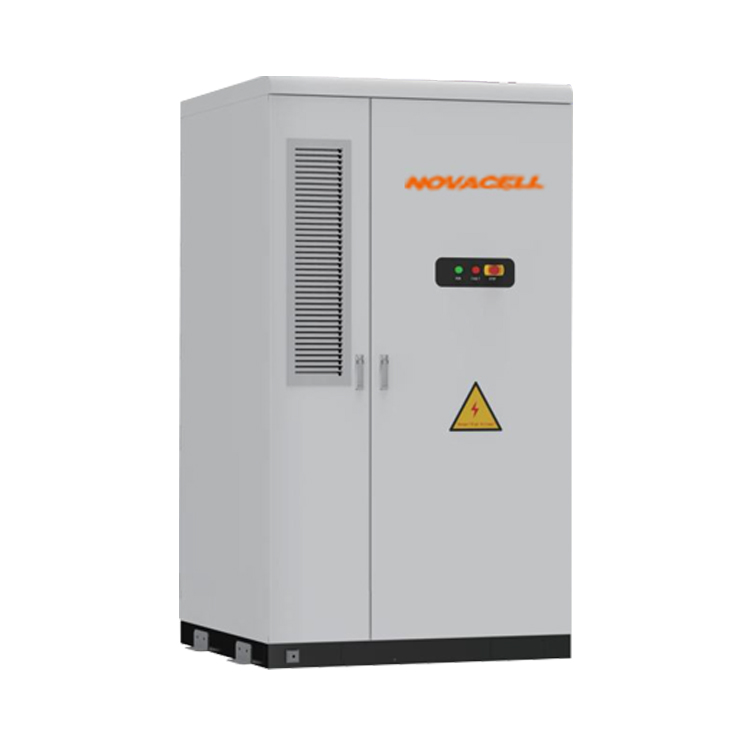

    • NOVACELL Liquid-Cooling Cabinet 261kWh/ 418kWh Bess Battery Energy Storage System 6500+ Life Cycles-

      NOVACELL Liquid-Cooling Cabinet 261kWh/ 418kWh Bess Battery Energy Storage System 6500+ Life Cycles-

    • 12V 145Ah LFP Lifepo4 Custom Battery Pack for EV Backup

      12V 145Ah LFP Lifepo4 Custom Battery Pack for EV Backup

    • NOVACELL 10.24KWH Module N80K~N130K 81.92kWh 102.4kWh 122.88kWh 133.12kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-

      NOVACELL 10.24KWH Module N80K~N130K 81.92kWh 102.4kWh 122.88kWh 133.12kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-

    • NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-

      NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-

    • 36V 12.5AH Lithium ion Battery with Charger

      36V 12.5AH Lithium ion Battery with Charger

    • LFP 24v 36v 48v 60v 72v 8ah 10ah 20ah 30ah 50ah Lithium Battery LiFePO4 for outboard motor wheelchair Electric car

      LFP 24v 36v 48v 60v 72v 8ah 10ah 20ah 30ah 50ah Lithium Battery LiFePO4 for outboard motor wheelchair Electric car

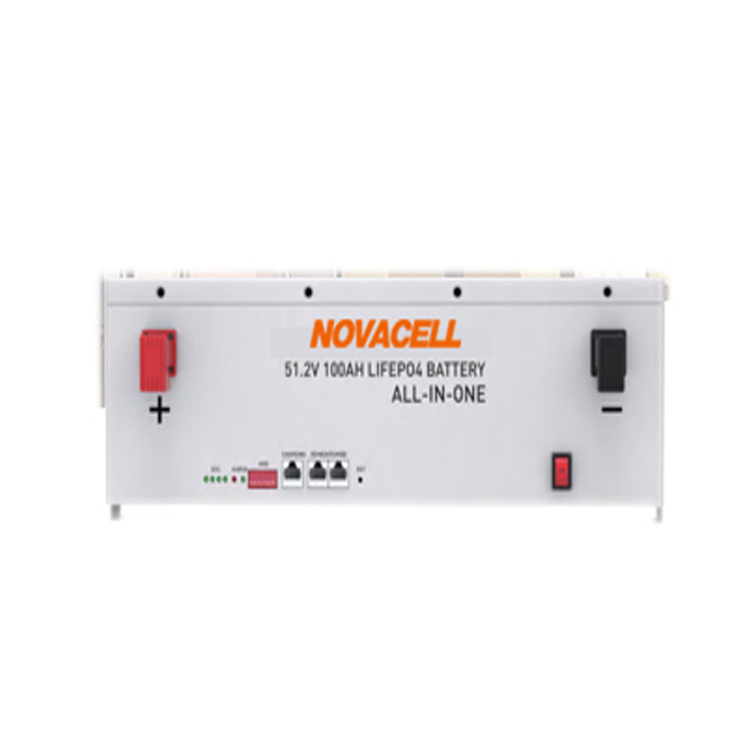

    • NOVACELL 51.2V 100Ah BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-
