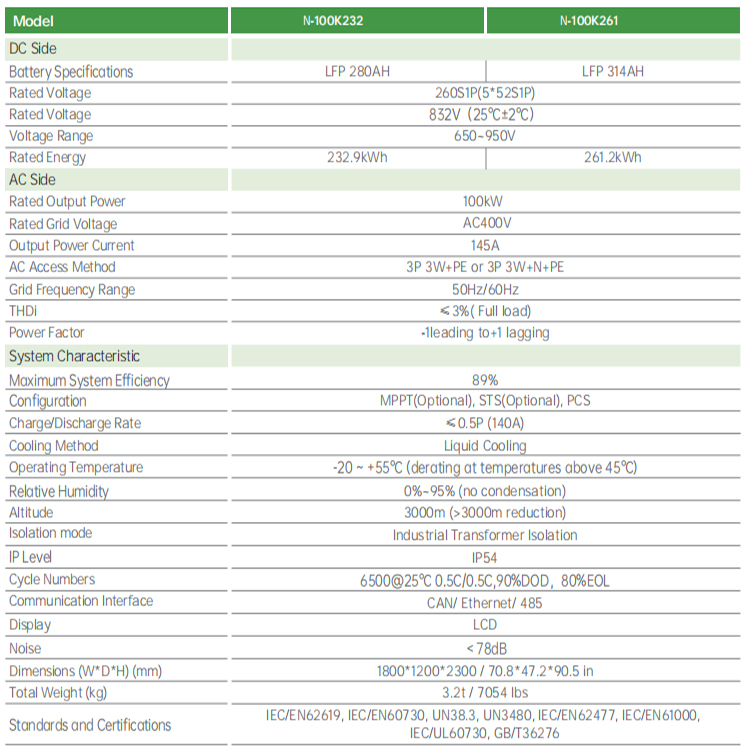

| Electrical Characteristics | Rated Voltage | 260S1P(5*52S1P) |
| Nominal Capacity | 232.9kWh | |
| Cycle life | 6500+ cycles @(25±2℃,0.5C/0.5C,80%DoD) | |
| Rated Voltage | 832V（25℃±2℃） | |
| Voltage Range | 650~950V | |
| Output Power Current | 145A | |
| Mechanical | Certification | IEC/EN62619, IEC/EN60730, UN38.3, UN3480, IEC/EN62477, IEC/EN61000, IEC/UL60730, GB/T36276 |
| Dimension | 1800*1200*2300mm | |
| N.W. | 3.2t | |
| PCM | Included | |
| Lock | Included | |
| Connector, NTC | TBA | |
| Switch,Indicator,display | TBA | |
| Step-up/Step-down | TBD |
We have a variety of lithium batteries available, including the 5.12KWH Module, 10.24KWH Module N80K~N130K 81.92kWh 102.4kWh 122.88kWh 133.12kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles

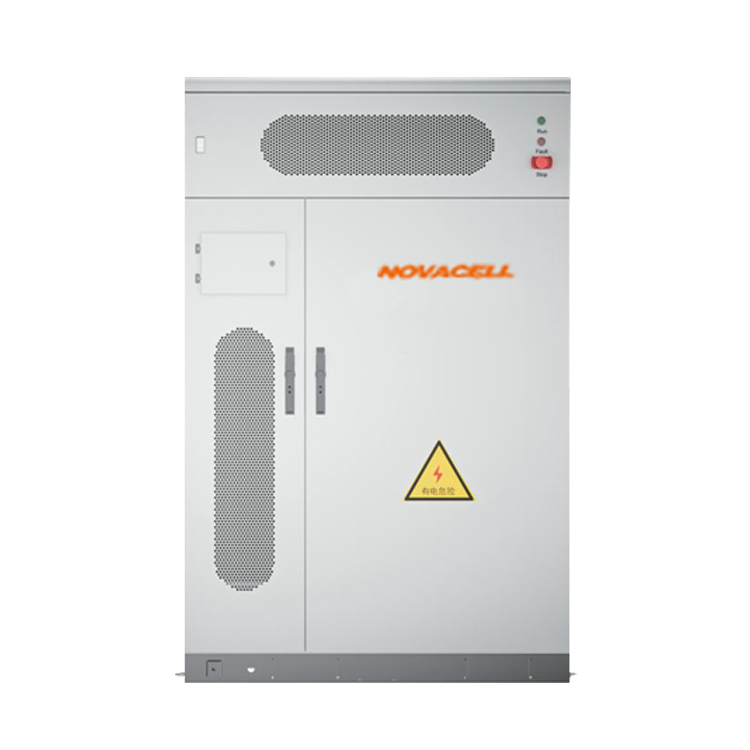

NOVACELL NOVACELL 100kw 232kwh 261kwh Outdoor Cabinet Bess Battery Energy Storage System 6500+ Life Cycles
